一、产品简介   Product introduction

        L系列标准孔板流量计有着悠久的历史背景，各种试验数据齐全。结构简单，无可动部件、长期使用稳定可靠，精度高。有丰富的设计制造和应用经验。标准化程度高，线性好，可不必进行实流标定。适用于单相条件下的液体、气体和水蒸汽的流量测量。

        L-series standard orifice flowmeter has along historical background and complete experimental data. Simple structure, nomovable parts, stable and reliable long-term use, and high accuracy. Has richexperience in design, manufacturing, and application. High degree ofstandardization, good linearity, and no need for actual flow calibration.Suitable for flow measurement of liquids, gases, and water vapor undersingle-phase conditions.

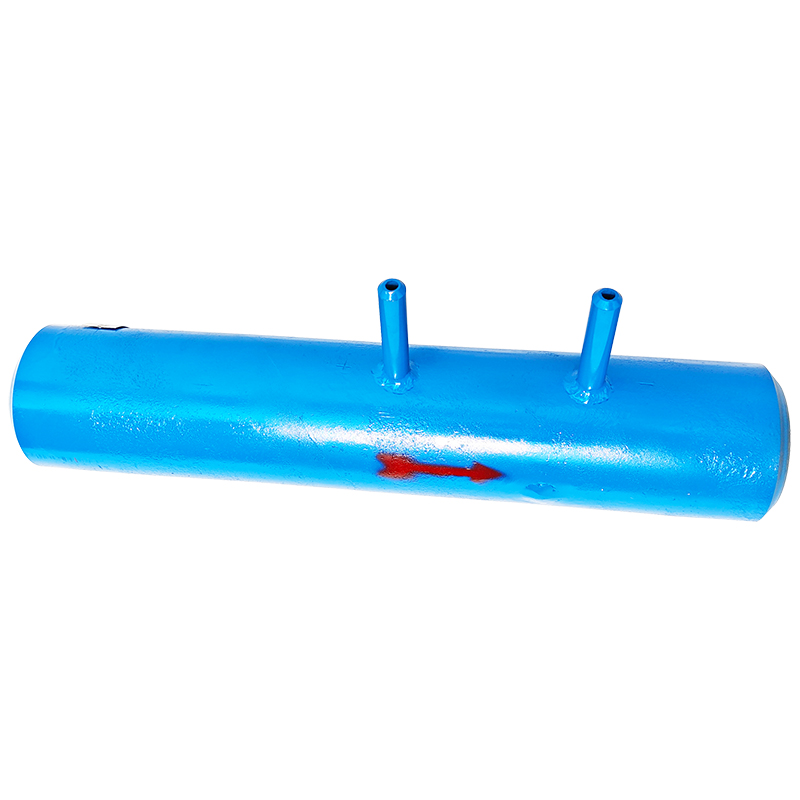

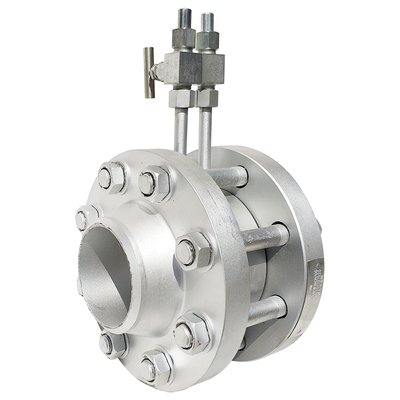

        L系列标准孔板流量计有可靠的实验数据和完善的国际(ISO5167)、国家标准(GB/T2624)。节流件有标准孔板、标准喷嘴、长颈喷嘴、文丘里喷嘴、圆缺孔板、四分之一圆缺孔板、限流孔板、文丘里管、环形孔板、V型锥孔板、多孔孔板、机翼测风装置、均速管、双文丘里管等。取压方式有角接取压、法兰取压、径距取压及特殊取压。供货形式可分为组件和整套装置。

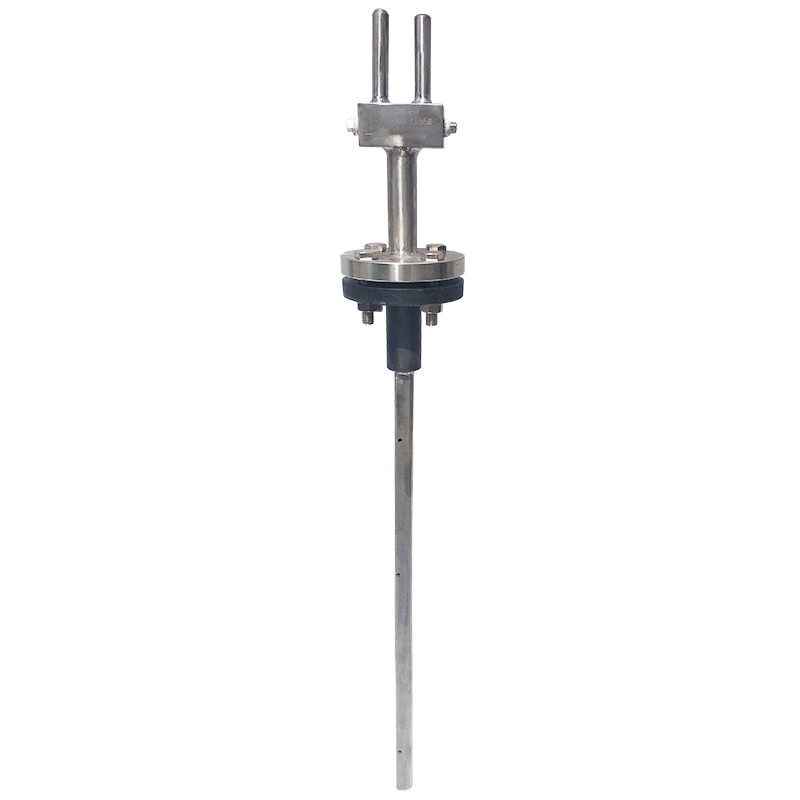

        L-series standard orifice flowmeter has reliableexperimental data and comprehensive international (ISO5167) and nationalstandards (GB/T2624). The throttling components include standard orificeplates, standard nozzles, long neck nozzles, Venturi nozzles, round missingorifice plates, quarter round missing orifice plates, flow limiting orificeplates, Venturi tubes, annular orifice plates, V-shaped conical orifice plates,porous orifice plates, wing wind measuring devices, uniform velocity tubes,double Venturi tubes, etc. The pressure measurement methods include cornerjoint pressure measurement, flange pressure measurement, radial distancepressure measurement, and special pressure measurement. The supply form can bedivided into components and complete sets of devices.

        L系列标准孔板流量计是测量流量的差压感受元件。配合差压变送器以及显示、记录、积算和调节仪表，可用来测量计算液体，蒸汽和气体的瞬时流量值和累计流量值。由于结构简单制造方便，安装容易，使用时间长，价格便宜等特点，在流量仪器中是应用最广泛，最成熟的一种。在国外和国内有着其固有的巨大市场，用户熟悉、数据完善；遵循国际标准计算与加工、使用灵活方便；国内目前流量测量中应用最广泛的仍然是差压式流量计，据有关资料的估计占流量仪表总用量的75%-85%之间。它在蒸汽锅炉、石油、化工、钢铁、电力、水利、造纸、制药、食品和化纤等行业中被广泛使用。

        L-series standard orifice flowmeter is adifferential pressure sensing element used to measure flow. Combined withdifferential pressure transmitters and display, recording, accumulation, andadjustment instruments, it can be used to measure and calculate the instantaneousflow rate and cumulative flow rate values of liquids, vapors, and gases. Due toits simple structure, convenient manufacturing, easy installation, long usagetime, and low price, it is the most widely used and mature type in flowinstruments. It has an inherent huge market both abroad and domestically, withfamiliar users and complete data; Following international standards forcalculation and processing, flexible and convenient use; At present, the mostwidely used flow meter in China is still the differential pressure flowmeter,which is estimated to account for 75% -85% of the total usage of flowinstruments according to relevant data. It is widely used in industries such assteam boilers, petroleum, chemicals, steel, electricity, water conservancy, papermaking,pharmaceuticals, food, and chemical fibers.

二、工作原理   Operational principle

三、产品特点   Product features

四、技术参数   Technical parameter

五、产品分类   Product classification

六、选型图谱   Selection chart

七、外形尺寸   Externaldimensions

八、安装说明   Installation instructions

九、订货须知   Ordering Notice

以上参数仅供参考，如有改动恕不另行通知!

Above parameters are for reference only andare subject to change without prior notice!
